Solar Hot Water: Complete Solutions or Components Available

Evacuated Glass Collectors:

Evacuated Glass Solar Tubes are the key components of Evacuated Glass Tube Solar Water Heaters, Solar Water Heating Systems. The evacuated glass solar tubes, having the best possible insulation---vacuum jacket, which allow sunlight to pass through freely but stop thoroughly the thermal heat transfer, are featuring high efficiency, low heat loss and longer life time.

Evacuated Tube Solar Collectors. are far more efficient than flat panel solar collectors in cold, cloudy, northern climates. As well they offer a number of other benefits:

• higher yearly efficiency due to the superior insulation provided by the vacuum. This makes vacuum tube collectors much better for winter space heating applications as well as all year domestic hot water.
• Easier Installation & Servicing – tubes are installed/removed individually without special tools. You don’t have to shut the system down if a tube is removed.
• Longer Life – absorber surfaces are protected from environmental degradation by the hermetically sealed glass tube.

EnCom carries two Evacuated Tube Solar Collectors; the EnCom15, and the EnCom25. Each collector comes standard with the requisite number of evacuated tubes and heat pipes, a header (manifold) and adjustable tilt mounting hardware kit.

EnCom Evacuated Tube Solar Collectors are available at wholesale pricing to qualifying Contractors, Dealers, Plumber, and Builders.  Contact us for pricing.

Solar Tanks:

Our Solar Hot Water tanks are a perfect fit for both domestic and space heating solutions. EnCom tanks feature: Low standby loss due to 3" of foam insulation Heavy steel with double glass line coating 40 mil (one mm) white elastic synthetic polyamide protective tank  cover With replaceable sacrificial anode Superb quality results in long service life Single and double coil

Circulator Pumps and Controllers:

A critical component of a Solar Hot water system is the controller and circulator.

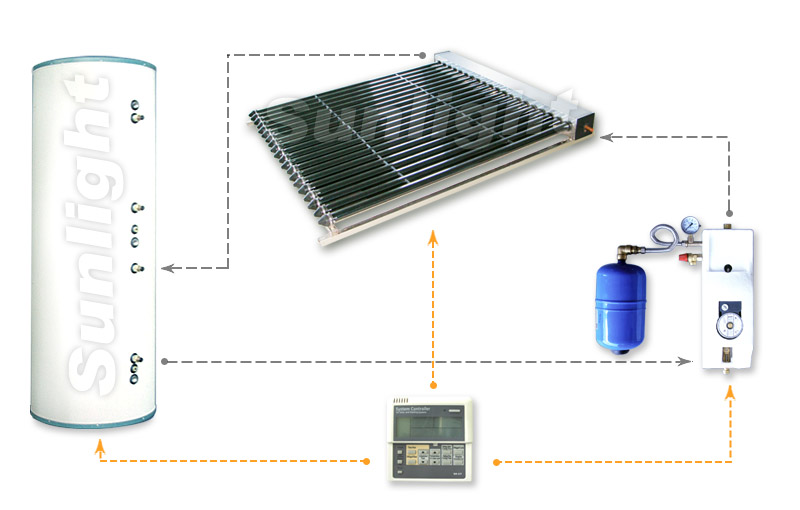

Solar Hot Water Circulators generally include a couple of key components: a Differential Temperature Controller and a Circulator Pump.

The Differential Temperature Controller reads the temperature at two crucial points in your Solar Hot Water System's loops; the outlet side of the Solar Collector manifold and the potable water inside the Solar Hot Water Storage Tank or traditional storage tank.

The Circulator Pump is controlled automatically by the the Controller and cycles water or Heat Transfer Fluid (HTF) through the Solar Hot Water System for heating. EnCom has a number of Controllers, Circulator Pumps & Packaged Circulator Kits available, designed specifically to work with our Solar Hot Water Systems.

Complete Solar Hot Water Systems:

Save by purchasing complete systems for both Domestic and Space Heat/Domestic application. Our packaged kits come complete with Solar Collectors, mounting brackets, storage tank, circulator, controllers and install instructions and assistance.  Contact us today for pricing.

Contact us for details on wholesale pricing

See our system.

Save Now - Provincial and Federal Incentives available for solar hot water units.
